Principle Operation of High temperature Switch for Fly Ash
The probe of the Admittance Switch forms one plate of a capacitance circuit, with the vessel wall making the second plate. The dielectric constant of the product between the probe and the vessel wall will cause a change of capacitance as the level approaches the probe. The change is detected, amplified and used to switch a relay for indication or control purposes. A special circuit is used to ignore product build-up between the sensing probe (active element) and guard, and also between the guard and vessel wall.
Function of High temperature Switch for Fly Ash

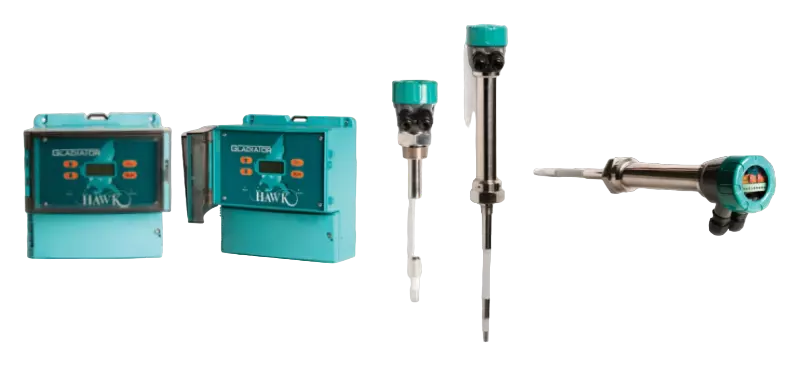

The Gladiator Admittance Smart Switch is point level switch for liquids, solids and powders. The unit is suitable for a broad range of products and dielectric constants up to high temperature of 450oC (842oF).
Typical Uses of High temperature Switch for Fly Ash
- Failsafe high-level / low-level alarm
- High-level alarm
- Low-level alarm
- Blocked chute / Plugged chute
- Interface detection
- Pump control.
Primary Areas Application of High temperature Switch for Fly Ash
- Asphalt
- Brewing
- Cement
- Chemical
- Dairy
- Edible oil
- Fertilizer
- Food & Beverage
- Glass
- Mining & Metals
- Oil & Gas
- Packaging
- Paint
- Paper
- Pharmaceutical
- Plastics
- Power Generation
- Refining
- Semiconductor
- Sugar
- Textile
- Water & Wastewater.
Features of High temperature Switch for Fly Ash
- Excellent immunity to product build-up
- Excellent temperature stability - no false trips
- Non contact switching possible with many products
- Simple ‘1-minute’ setup
- Remote sensor or Integral ‘all in one’ types
- Relay outputs: Integral probe (1) Remote (2)
- Modbus over Ethernet TCP/IP option
- Remote test function
- Adjustable ON and OFF delays (0-20 sec)
- Remote 3G Connection option
- Remote amplifier to probe separation up to 500 meters (1640 ft)
- Bright visual status indication on Probe
- Independent housing alignment after mounting thread locked.
